GYSPOT PTI EXPERT - 400 V

Article reference
Material code
Unit contains
Carton Size
  • High duty cycle with a maximum welding current of 14,500 A, suitable for welding all types of steel on modern vehicles (HLE/THLE, UHLE and Boron)
  • Liquid-cooled (30 litre transformer, electrodes and caps for maximum performance
  • High speed (10 spots/min)
  • Clamping force up to 550 daN at 8.1 bar to meet OEM requirements
  • Integrated transformer in the gun, reducing power consumption to a minimum
GYSPOT PTI EXPERT - 400 V

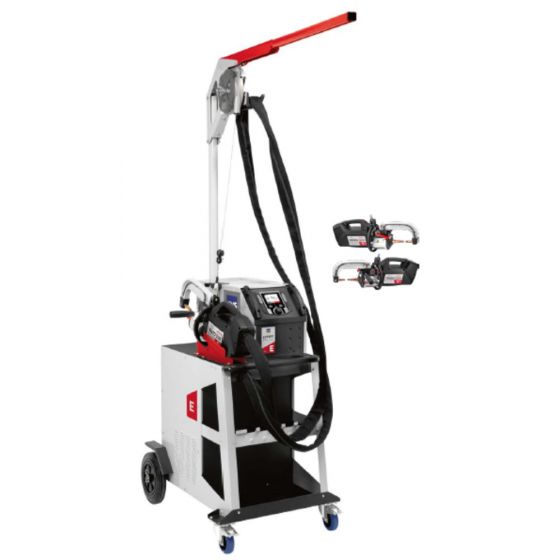

The GYSPOT PTI EXPERT is an automatic spot welder designed for the assembly of car body panels. It features a manual over-opening mechanism for improved user convenience, and a balancing arm to reduce the weight of the gun. The liquidcooled clamp has an integrated transformer, and can be rotated through 360° to facilitate welding in difficult-to-access areas. It also features an ergonomic, user-friendly colour interface.

More Information
Product name GYSPOT PTI EXPERT - 400 V
Article reference D83943
Unit contains 1
Net weight 101.57 KG
Gross weight 122.296 KG
Supplier name GYS
