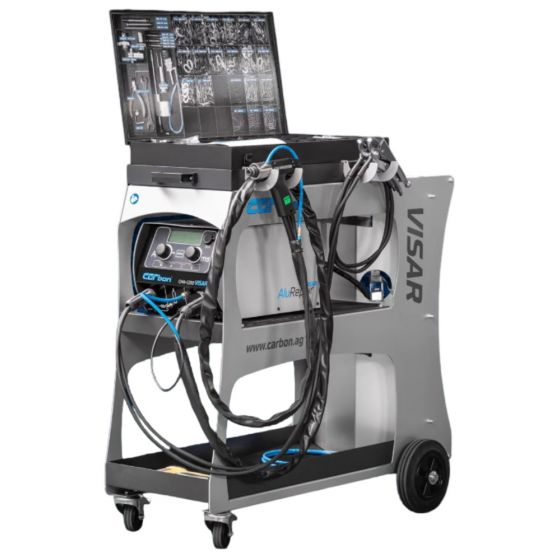

AluRepair VISAR
Article reference
Material code
Unit contains
Carton Size
- Scope of delivery: power unit for stud welding with stroke ignition Welding gun with bit holder Hose package Gas hose
- System trolley
- Pressure regulator
- Gas hose
- Pyrometer
- Aluminum bit set (14 types, 50 pieces each)
- Bolt holder 4 mm
- Bolt holder 5 mm
- Bolt holder 6 mm
- Bolt holder 8 mm
- Bolt holder 10 mm
- Gas pipe 42 mm for bolts 4 / 5 / 6 mm
- Gas pipe 48 mm for bolts 8 mm
- Gas pipe 58 mm for bolts 10 mm
- Bolt holder 4 mm for pull bolts
- Bolt holder 5 mm for pull bolts
- Bolt holder 6 mm for pull bolts
- Gas pipe 110 mm for pull bolts
- CMA-155 Cutter for aluminum bits
- Pull hook for EasyPuller
- Thermochromic pen
- Single-wire electrode, aluminum (12x72 mm)
- Single-wire electrode, stainless steel (12x72 mm)
- Stainless Steel Welding Bolts(50 pieces each): 4 x 45 mm, CMA-194 5 x 45 mm and CMA-195 6 x 45 mm
- Aluminium Welding Bolts(25 pieces each): B04120 M4 x 25, B04190 M5 x 25 and B04245 M6 x 25
Modern car bodies in multi-material design [MMD] require a great deal of expertise as well as first-class and innovative repair solutions. AluRepair VISAR, the globally unique, high-performance 3-in-1 system, can be used to weld aluminum bits as well as threaded, ground and device carrier studs up to Ø 12 mm and also to set special pull-out studs for the rapid removal of self-pierce rivets. Technical data: Welding area: 02-12mm,M3-M12; Welding material: Steel(unalloyed and alloyed), aluminium; Current setting range: 25 – 1.200 A; Welding time: 5 - 1.500 ms (infinitely variable); Connection: 200 to 600 V, 3 phases, 50/60 Hz; Type of cooling: F (thermally controlled ventilator); Protection type: IIP 23 (use in the open air also permitted); Dimensions: 430 x 288 x 246 mm (without cable); Weight: 18,5 kg
| Product name | AluRepair VISAR |
|---|---|
| Article reference | CMA-1200 |
| Unit contains | 1 |
| Net weight | 95.5 KG |
| Gross weight | 95.5 KG |
| Supplier name | Carbon GmbH |
